MUD PUMP LINERS
Felis etiam pellentesque scelerisque eleifend in aliquam sed morbi nisl lectus mi proin ultricies quis bibendum.
EMAIL Us Today:
josean.lu@lcpumpliner.com
Mud Pump Parts Analysis Diagram
MUD PUMP LINERS
The mud pump cylinder liner is the core component of the oil drilling mud pump. It is mainly used to accommodate and guide the movement of the piston and withstand the erosion and corrosion of high-pressure mud. Its performance directly affects the efficiency and cost of drilling operations.

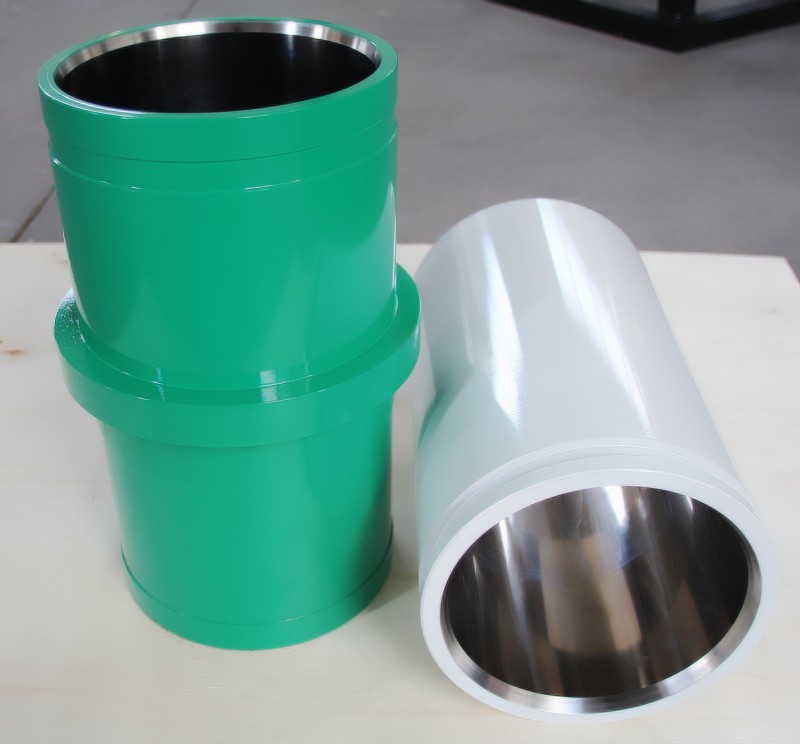

Mud Pump File Hard liner
Life ExpectancyFrom 600 to 800 hours

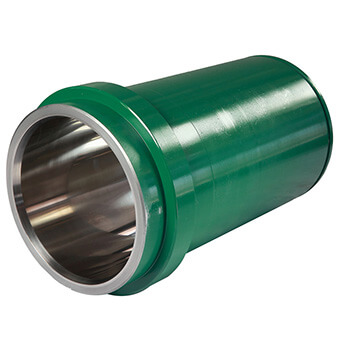

mud pump bimetallic cylinder liner
Life Expectancy More than 800 hours

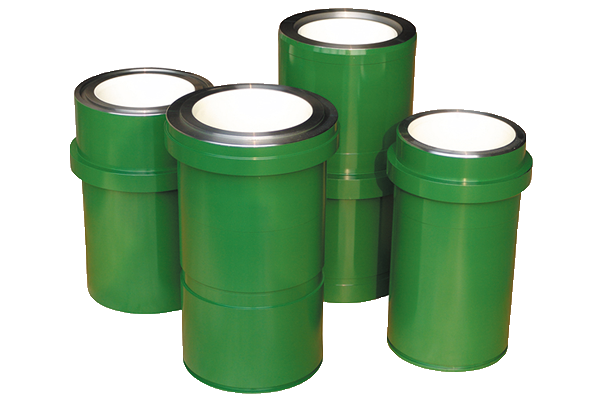

mud pump ceramic liner
Life Expectancy More than 5.000 hours
Mud Pump parts
Feature One
Ultra-hard surface treatment
Feature Two
Low cost
Feature Three
Good substrate toughness
Feature Four
Suitable for low- to medium-pressure drilling environments
Feature Five
High maintenance requirements
Feature Six
Moderate corrosion resistance
Mud Pump Parts
Mud pump bimetallic cylinder liner
Feature One
Composite Structure Design
Feature Two
Long Life
Feature Three
High Corrosion Resistance
Feature Four
Excellent High-Temperature Resistance
Feature Five
Precision Shrink Fitting Process
Feature Six
High Cost-Effective
Mud Pump Parts
Feature One
Extreme Wear Resistance
Feature Two
Extremely Long Service Life
Feature Three
Chemical Corrosion Resistance
Feature Four
Friction Reduction and Energy Saving
Feature Five
Maintenance-Free Operation
Feature Six
Brittleness Limit
Frequently Asked Questions
Mud Pump File Hard Liner FAQ
It is typically made of high-chromium cast iron or steel with a hardened shell and a heat-treated surface for enhanced wear resistance.
Suitable for moderately abrasive and corrosive environments, such as shallow drilling or mud with low sand content.
It is relatively short, generally between 1000–2000 hours, and requires frequent replacement (compared to data for ceramic cylinder liners).
It requires regular inspection for wear and timely replacement to prevent damage to the pump body.
It complies with API 7K standards and is suitable for general mud pump models.
Mud Pump Bimetallic Cylinder Liner FAQ
An outer layer of high-strength alloy steel and an inner layer of wear-resistant material (such as chrome alloy or ceramic) combine the advantages of both.
A balance of corrosion resistance and mechanical strength, lower cost than ceramic liners, and suitable for a variety of drilling environments.
Approximately 2,000–4,000 hours, depending on operating conditions and maintenance frequency.
Interchangeable with OEM products and meeting API-7K certification requirements.
Suitable for medium-deep drilling and mud environments with low levels of grit.
Mud Pump Ceramic Liner FAQ
Made of zirconium oxide (ZrO₂) or aluminum oxide (Al₂O₃), they offer high hardness, corrosion resistance, and high-temperature resistance.
The service life can reach over 5,000 hours, 5–10 times that of a bimetallic cylinder liner.
Deep oil and gas wells, hard formations, high-sand mud, and offshore drilling.
Maintenance frequency is low, but severe impact should be avoided to prevent cracking of the ceramic layer.
The initial cost is higher, but due to its long service life and reduced downtime, it is more economical in the long term.
