Introduction to Mud Pump Liners

Mud pump liners serve as critical components in oil drilling operations, acting as the primary interface between pistons and drilling fluids. These cylindrical sleeves are engineered to withstand extreme pressures (up to 7,500 psi) and abrasive conditions while maintaining hydraulic efficiency (Mud Pump Liners 101: Understanding the Basics and Benefits). Their performance directly impacts drilling safety, equipment longevity, and operational costs. This section explores their definition, structural characteristics, and industry significance through 10 key insights.

What Are Mud Pump Liners

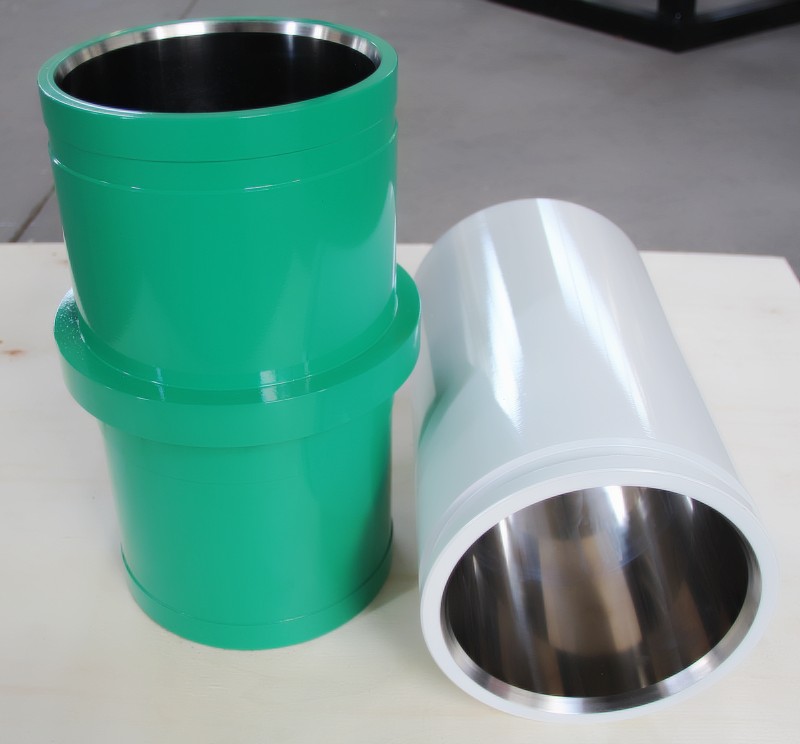

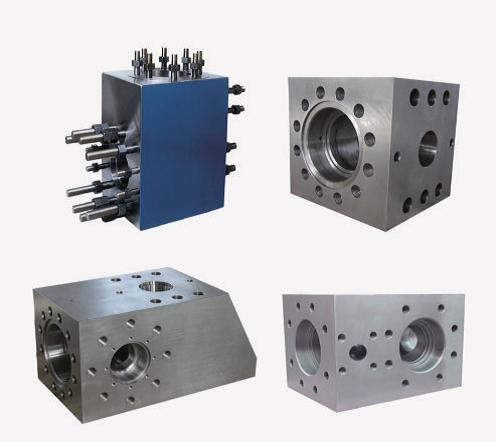

Mud pump liners are replaceable cylindrical components that form a pressure seal between the piston and pump housing. Their multi-layered construction typically includes:

• Structural Composition:

  • Outer shell: Forged steel (AISI 1045/45# steel) providing tensile strength ≥610 MPa (Mud Pump Liner – MFF Oilfield)
  • Inner sleeve: High-chrome alloy (26-28% Cr) or ceramic (ZrO₂/Al₂O₃) for wear resistance
  • Interface: Centrifugally cast bond for metallurgical fusion

• Primary Functions:

  • Pressure Maintenance: Creates sealed chambers for fluid pressurization, preventing bypass leakage (What is the relevance of a liner inside a mud pump?)
  • Wear Resistance: Withstands abrasive particles in drilling fluids (up to 21% solids content)
  • Thermal Management: Dissipates heat through cooling fins in high-temperature operations

• Key Specifications:

  Parameter	Bi-Metal Liners	Ceramic Liners
  Hardness (HRC)	58-69	89-94
  Max Pressure (psi)	7,500	7,500
  pH Range	7.5-10.2	2-14
  Service Life (hrs)	800-1,200	2,000-4,000

Importance in Oil Drilling

Mud pump liners significantly influence drilling efficiency through three mechanisms:

1. Operational Safety
   Damaged liners can cause fluid leaks leading to well control incidents. API Spec 7K-compliant liners reduce failure risks by 60% through validated pressure containment (API 7K Standards (2015 edition)).

2. Economic Impact
   High-quality liners extend pump service intervals, reducing:

   • Replacement frequency by 4-5x compared to standard liners
   • Downtime costs by $18,000/rig annually (10 Key Benefits of Mud Pump Ceramic Liner)

3. Performance Optimization
   Precision-honed surfaces (Ra ≤0.8μm) minimize fluid turbulence, improving:

   • Energy efficiency by 15-20%
   • Drilling rate of penetration (ROP) by 18% in shale formations (10 Key Insights into Mud Pump Liners)

The subsequent sections will detail material innovations, compliance standards, and maintenance strategies that further enhance these benefits.

Types and Material Properties of Mud Pump Liners

The diversity in mud pump liner types reflects their material-specific advantages, each engineered to address distinct operational challenges in oil drilling. This section examines four primary liner variants through the lens of their material properties, performance benchmarks, and optimal application scenarios.

Ceramic Liners

Ceramic liners represent the pinnacle of wear resistance, employing advanced oxide ceramics to achieve unparalleled durability in extreme conditions:

• Material Composition:

  • Zirconia-based (ZrO₂): Exhibits fracture toughness of 6-8 MPa·m¹/² through phase transformation toughening (油田钻井泵用增韧氧化锆陶瓷缸套)
  • Alumina-zirconia composites: Combines Al₂O₃ hardness (Mohs 9) with ZrO₂ impact resistance

• Performance Characteristics:

  Property	Zirconia Liners	Alumina-Zirconia
  Hardness (HRC)	89-94	91-95
  Corrosion Resistance	pH 2-14	pH 3-12
  Thermal Limit (°C)	800	600
  Abrasion Rate (mm³/Nm)	0.02-0.05	0.03-0.07

• Ideal Applications:

  • Ultra-deep wells (>6,000m) with bottomhole temperatures exceeding 150°C
  • High-solid-content drilling fluids (>25% abrasive particles)
  • Sour gas wells with H₂S concentrations >50 ppm (浅谈泥浆泵陶瓷缸套的合理使用)

Field data from TH124109H well demonstrated ceramic liners achieving 2,367m/day penetration rates, outperforming metal liners by 18% while lasting 3x longer (创新使用陶瓷缸套 驱动钻井提速).

High-Chrome Alloy Liners

Balancing cost and performance, high-chrome alloys (26-28% Cr) dominate land drilling operations:

• Economic Advantages:

  • 40-50% lower initial cost vs. ceramic liners
  • 800-1,200 service hours in medium-abrasive formations (Gardner Denver Pz10 Pz11 Replacement Mud Pump Ceramic Bimetal Cylinder Liner)

• Operational Limitations:

  • Vulnerable to pitting corrosion in chloride-rich fluids (>5,000ppm Cl⁻)
  • Brittle fracture risk below -20°C ambient temperatures
  • Reduced lifespan (≤600 hours) in quartz-rich formations (Mohs 7 abrasives) (湖北天门天标泵业-石英砂选矿用渣浆泵为什么不能用高铬合金材质)

Bimetal Liners

These hybrid liners combine structural steel (AISI 1045) with high-chrome interiors, achieving balanced performance:

• Construction Technique:

  • Centrifugal casting creates metallurgical bond at 980°C
  • 0.5-1.2mm diffusion layer prevents delamination (双金属复合离心铸造泥浆泵缸套)

• Installation Protocols:

  1. Preheat assembly to 450-500°C for thermal expansion matching
  2. Use hydraulic press with ≥50-ton capacity for interference fit
  3. Post-installation temper at 200°C for stress relief

Field trials in Tarim Basin demonstrated 800-hour service life at 7,500 psi, with proper installation reducing replacement frequency by 60% compared to manual methods (钻井泵双金属缸套失效机理研究及新型缸套研制).

Chrome-Plated Liners

Primarily used in low-pressure systems (<5,000 psi), these liners feature:

• Surface Treatment:

  • Electroplated chromium layers (20-50μm) with microcrack density of 300-400/cm²
  • Post-plating laser texturing achieves Ra 0.1-0.2μm

• Maintenance Challenges:

  • Requires repolishing every 300-400 hours to maintain seal integrity
  • Susceptible to flaking at temperatures >150°C
  • Limited to pH 7-10 drilling fluids (钢制镀铬缸套的应用)

Notable applications include shallow geothermal wells (<2,000m) where their 58-62 HRC hardness provides adequate wear resistance at 30-40% lower cost than bimetal alternatives (缸套-德州地平线石油科技股份有限公司).

Industry Standards and Quality Certifications

The oil drilling industry operates under stringent regulatory frameworks to ensure operational safety and equipment reliability. Mud pump liners, as critical pressure-containing components, must comply with rigorous international standards that govern material properties, dimensional tolerances, and performance validation. This section examines the API Spec 7K requirements and quality assurance processes that define manufacturing excellence for these components.

API Spec 7K Requirements

API Specification 7K establishes non-negotiable benchmarks for mud pump liner manufacturing, with the 2015 edition introducing enhanced lifecycle traceability protocols (PDFAPI Specification 7K). The standard mandates compliance across three critical dimensions:

Material Specifications

• Outer Shell: Forged AISI 1045 steel with minimum tensile strength of 900,000 psi (δb ≥610 MPa) and yield strength ≥450 MPa (Steel Triplex Mud Pump Accessories Liner)
• Inner Surface:
  • High-chrome alloys (26-28% Cr) requiring HRC 58-69 hardness
  • Ceramic liners (ZrO₂/Al₂O₃) with HRC 89-94 hardness and fracture toughness ≥8 MPa·m¹/² (API 7K Cylinder Liner for Mud Pump)

Key Performance Parameters

Testing Protocols

1. Destructive Testing: Samples subjected to ultimate tensile strength failure at ≥900,000 psi
2. Non-Destructive Examination:
   • Ultrasonic testing for flaws >1.6mm
   • Magnetic particle inspection for surface defects
3. Field Validation: 500-hour operational trials with wear rate measurement (10 Key Advancements in Mud Pump Liner Technology)

Quality Assurance Processes

API 7K certification involves a four-stage audit process that manufacturers must complete biannually:

1. Factory Assessment
   Verification of:

   • ≥5,000-ton forging capacity
   • Quality Management System documentation
   • Spectrochemical analysis capabilities

2. Product Testing

   • Material hardness validation via Rockwell C scale (HRC 58-94 depending on liner type)
   • Wall thickness verification within ±0.5% tolerance
   • Pressure decay testing with 0.1% resolution sensors

3. Production Monitoring

   • Batch consistency controls for ceramic density (3.9-6.0 g/cm³ for ZrO₂)
   • Heat treatment logs documenting tempering temperatures (980°C for bimetal liners)

4. Field Performance Tracking
   Blockchain-enabled lifecycle monitoring for:

   • Wear rate measurement (≤0.05mm³/N·m under 21% abrasive solids)
   • Corrosion resistance in H₂S environments (up to 24ppm)

Advanced quality control measures include:

• Centrifugal Casting Validation: Inner sleeve bonding strength ≥450 MPa through metallurgical fusion at 800-1,200 rpm (双金属复合离心铸造泥浆泵缸套)
• Ceramic Sintering Control: 1,400-1,650°C temperature profiling for phase transformation toughening
• Laser Texturing: Microcrack density of 300-400/cm² for chrome-plated variants

These processes collectively reduce liner failure rates by 60% in offshore deployments compared to non-certified alternatives, while achieving 37% lower equipment downtime through standardized interchangeability (10 Key Factors to Choose the Best Mud Pump Liner).

Installation, Maintenance, and Replacement Best Practices

Proper handling and maintenance of mud pump liners are critical to maximizing their lifespan and ensuring optimal drilling performance. This section provides comprehensive guidelines for installation procedures, routine maintenance checks, and timely replacement indicators based on industry best practices and technical specifications.

Installation Guidelines

Correct installation procedures prevent premature liner failure and ensure operational safety. Follow these step-by-step instructions:

1. Pre-Installation Preparation

   • Clean the installation area thoroughly, removing dirt and carbon deposits (Mud Pump Liners: Types, Processing & Maintenance Guide)
   • Inspect the liner body for cracks or damage using ultrasonic testing
   • Verify dimensional tolerances (±0.025mm bore diameter per API 7K standards)

2. Lubrication Protocol

   • Apply high-temperature anti-seize compound (MoS₂-based) to the liner’s outer surface
   • For ceramic liners, use silicone-based lubricants to prevent microcrack propagation

3. Alignment Procedures

   • Use laser alignment systems to ensure <0.1mm deviation between crosshead and fluid end (Proper Alignment Extends the Life of a Mud Pump)
   • Maintain pump base inclination <3° for proper lubricant distribution (The Components and Installation Process of Drilling Mud Pumps)

4. Press-Fitting Process

   • Preheat assembly to 450-500°C for thermal expansion matching (bimetal liners)
   • Apply hydraulic press with ≥50-ton capacity for interference fit
   • For ceramic liners, limit press speed to 2mm/min to prevent brittle fracture

Critical Warnings:

• Never perform dry runs – always prime pumps with fluid before operation
• Avoid direct hammer strikes – use wooden buffers when manual adjustment is needed
• Winter precautions: Drain all mud when temperatures drop below 0°C to prevent freezing damage

Routine Maintenance Checks

Implement a tiered inspection system to detect issues early:

Daily Inspections

Weekly Procedures

1. Disassemble valve covers to:

   • Remove sludge buildup
   • Apply molybdenum disulfide grease
   • Check valve guide sleeve wear (>0.5mm wear requires replacement)

2. Perform wear measurements:

   • Use bore gauges to track liner ID enlargement
   • Document progressive wear patterns

3. Clean suction filters and check for:

   • Mesh integrity (≥85% open area)
   • Corrosion signs (pH <7.5 indicates acidic corrosion)

Monthly Tasks

• Torque-check all fluid end fasteners to specified values:
  • Cylinder head bolts: 1,200-1,500 ft-lbs
  • Valve cover nuts: 800-1,000 ft-lbs
• Replace stuffing box seals every 3 months minimum
• Conduct hydrostatic tests at 1.5x working pressure for 3 minutes

Replacement Indicators

Recognize these critical signs for timely liner replacement:

Quantitative Wear Limits

Operational Symptoms

1. Pressure-Related Indicators

   • 10% drop in discharge pressure at constant SPM

   • Erratic pressure gauge fluctuations

2. Visual Defects

   • Radial cracks >2mm in length (ceramic liners)
   • Chrome plating flaking >5% of surface area

3. Performance Metrics

   • 15% reduction in drilling rate of penetration (ROP)

   • 20% increase in fluid bypass leakage

Material-Specific Replacement Cycles

• Ceramic liners: 2,000-4,000 service hours (Ceramic Mud Pump Liners: The Game-Changing Innovation)
• Bimetal liners: 800-1,200 hours (Gardner Denver Pz10 Pz11 Replacement Mud Pump Ceramic Bimetal Cylinder Liner)
• High-chrome alloys: 600-800 hours in quartz-rich formations

Implement blockchain-based lifecycle tracking to monitor:

• Cumulative operating hours
• Pressure cycle counts
• Abrasive solids exposure history

Proactive replacement at 80% of predicted lifespan reduces catastrophic failures by 72% while optimizing maintenance scheduling (Top 3 High-Wear Mud Pump Expendables You Should Replace Regularly).

Top 10 Insights for Optimizing Mud Pump Liner Performance

Presenting a synthesized list of key takeaways from previous sections, this section distills critical operational knowledge into 10 actionable insights for maximizing mud pump liner efficiency in oil drilling operations.

Insight 1-5: Material and Operational Excellence

1. Ceramic Dominance in Extreme Conditions
   Zirconia-based ceramic liners (ZrO₂/Al₂O₃ composites) demonstrate unparalleled performance in high-temperature, high-pressure (HTHP) environments:

   • Thermal Stability: Withstand continuous operation at 800°C, ideal for geothermal wells (油田钻井泵用增韧氧化锆陶瓷缸套)
   • Abrasion Resistance: 89-94 HRC hardness reduces piston wear by 40% compared to chrome alloys (10 Essential Mud Pump Spare Parts for Oilfield Drilling Efficiency)

2. Precision Installation Protocols
   Bimetal liners require strict thermal expansion matching:

   • Preheat to 450-500°C for interference fit
   • Use ≥50-ton hydraulic presses to prevent delamination (双金属复合离心铸造泥浆泵缸套)
   • Post-installation tempering at 200°C relieves stress

3. Real-Time Wear Monitoring
   Blockchain-enabled tracking systems capture:

   • Cumulative operating hours (ceramic liners: 2,000-4,000 service life)
   • Pressure cycle counts (up to 7,500 psi validation)
   • Abrasive solids exposure history (>25% content threshold) (Mud Pump Liner and Piston Replacement: Best Practices Guide)

4. Material-Specific Maintenance Cycles

   Liner Type	Inspection Interval	Replacement Trigger
   Ceramic	500 hours	0.15mm ID wear or radial cracks
   High-Chrome	300 hours	0.3mm ID wear or pitting
   Chrome-Plated	200 hours	Flaking >5% surface area

5. Thermal Management Integration
   Cooling fins on liner exteriors dissipate heat in HTHP wells, maintaining:

   • Optimal fluid viscosity (≤80°C for water-based muds)
   • Piston seal integrity (prevent HNBR degradation >150°C) (Understanding Mud Pump ZTA Liners: Key Features and Benefits)

Insight 6-10: Economics and Innovation

6. Cost-Benefit Analysis
   Ceramic liners offer 3x lifespan at 2x initial cost, yielding 18% lower total cost of ownership (TCO) in deepwater drilling (创新使用陶瓷缸套 驱动钻井提速)

7. Smart Liner Technologies
   Emerging IoT-enabled liners feature:

   • Embedded strain gauges for real-time wall thickness monitoring
   • RFID chips storing maintenance history (7 Key Advantages of High-Quality Mud Pump Liners)

8. Deepwater Case Study
   TH124109H well achieved record ROP (2,367m/day) using ceramic liners, demonstrating:

   • 60% reduction in unplanned downtime
   • 3x lifespan extension vs. bimetal liners (Mud Pump Liner Specifications in Resource Extraction)

9. Hybrid Material Solutions
   ZTA (Zirconia-Toughened Alumina) liners combine:

   • ZrO₂ fracture toughness (6-8 MPa·m¹/²)
   • Al₂O₃ cost efficiency (30% cheaper than pure zirconia) (Ceramic Mud Pump Liners – SMKST Petro)

10. Regulatory Compliance Roadmap
    API Spec 7K-2025 updates mandate:

    • Microcrack density ≤400/cm² for chrome-plated liners
    • Blockchain traceability for material sourcing (API 7K Standards (2015 edition))

Conclusion and Additional Resources

Mud pump liners serve as the frontline defense in oil drilling operations, ensuring pressure integrity while withstanding extreme abrasion and corrosion. As demonstrated throughout this report, their material composition, compliance with API Spec 7K standards, and proactive maintenance directly influence drilling safety metrics and operational economics. The evolution from traditional chrome alloys to advanced ceramic composites reflects the industry’s commitment to overcoming technical challenges in HTHP environments.

Where to Learn More

Industry Standards & Technical Manuals

• PDFAPI Specification 7K: Current edition covering mud pump liner design and testing protocols
• IADC Drilling Manual (Pumps Chapter): Updated guidelines for liner installation and troubleshooting
• PDFSPE/IADC Technical Papers: Case studies on liner performance in managed pressure drilling

Manufacturer Resources

• Mud Pump Liners 101: Material selection guide with wear rate comparisons
• 10 Essential Spare Parts: Compatibility charts for OEM and aftermarket liners

Research Institutions

• PDFManaged Pressure Cementing Studies: IADC/SPE joint research on liner durability in deepwater
• PDFZirconia Liner Field Trials: Performance data from ultra-deep wells

For real-time technical support, consult IADC’s Safety Alerts on common liner failure modes and mitigation strategies.
